Budget Electronics (comes with captive wallwart power supply*)
(Add $12 per jack for premium teflon jacks)

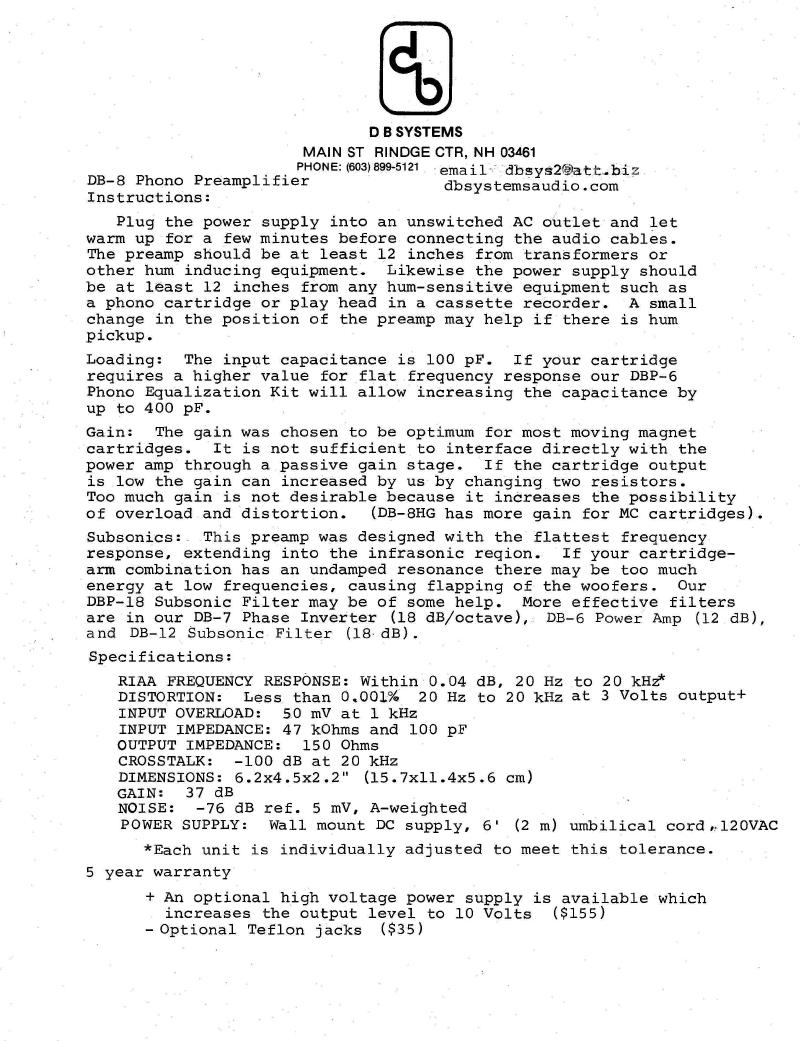

DB-8 Phono
Preamplifier, 37 dB gain, RIAA within .04 dB, .002% distortion, output
150 ohms 300
This comes with a 12v walwart power supply. Optionally it can be modified to run on the DB preamp for $40.

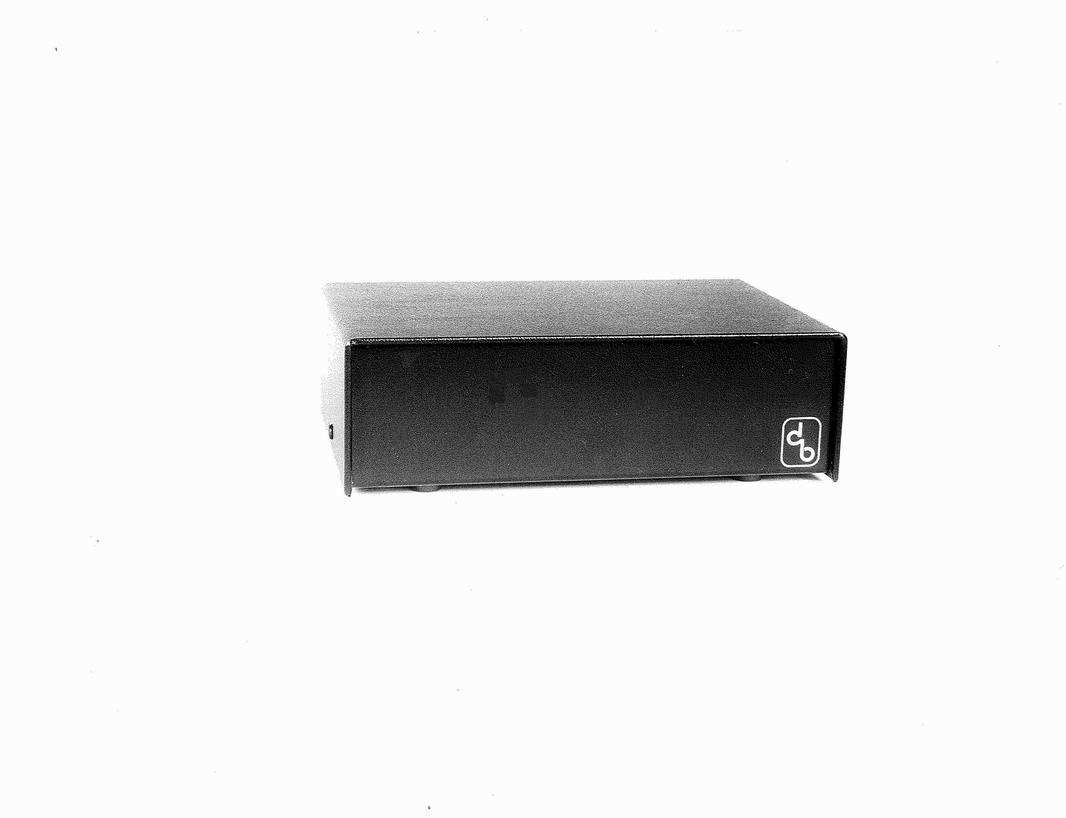

Photo Specs
Option: Teflon insulated silver-plated copper internal wiring $15, +6dB gain $10, additional set of input jacks for parallel loading
without using a Y adapter 35.

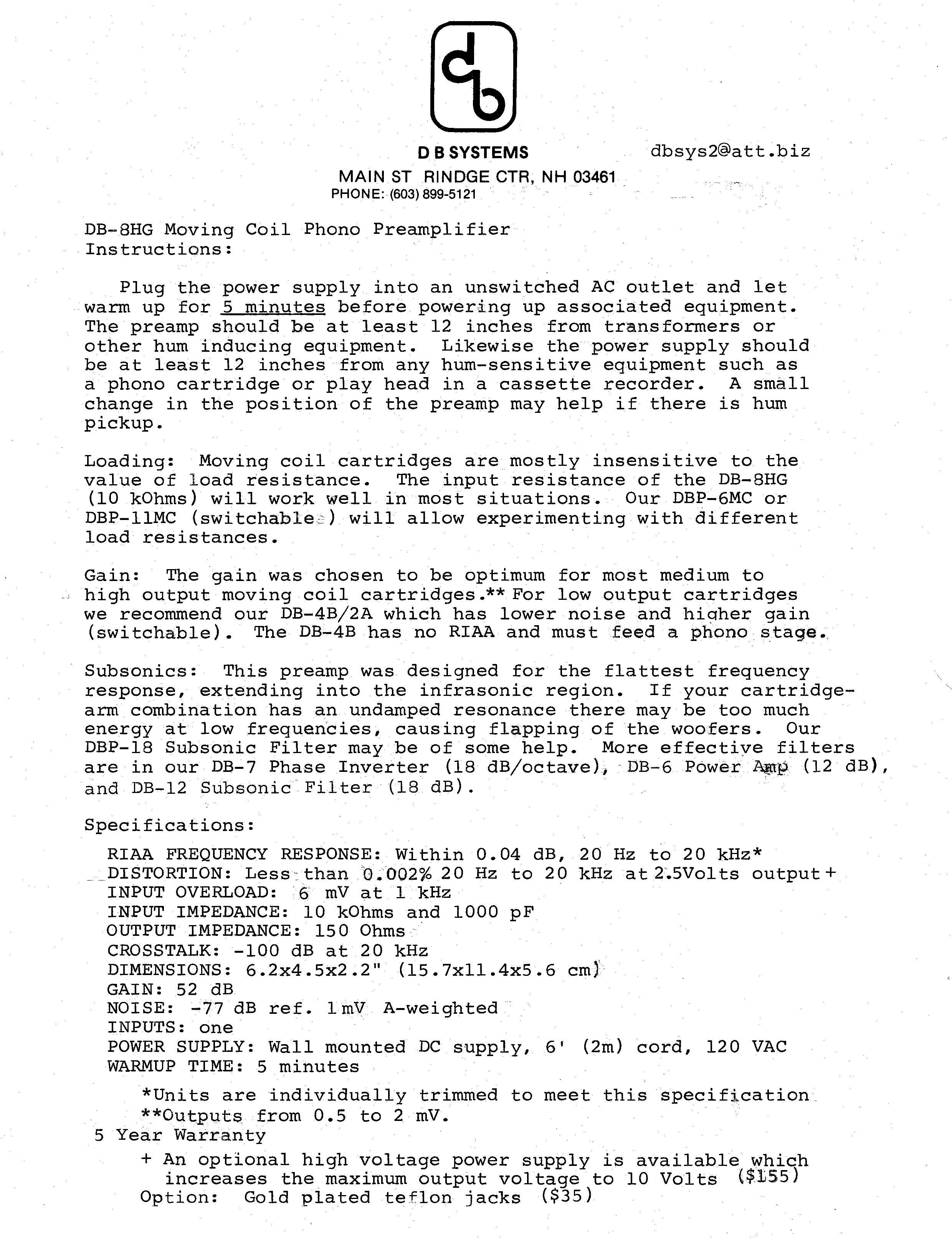

DB-8HG Moving Coil
RIAA Phono Preamplifier, 52 dB gain 350
This comes with a 12v walwart power supply. Optionally it can be modified to run on the DB preamp for $40.
Specs
Photo Option: Teflon gold
jacks $48 Teflon insulated silver-plated copper internal wiring $15,

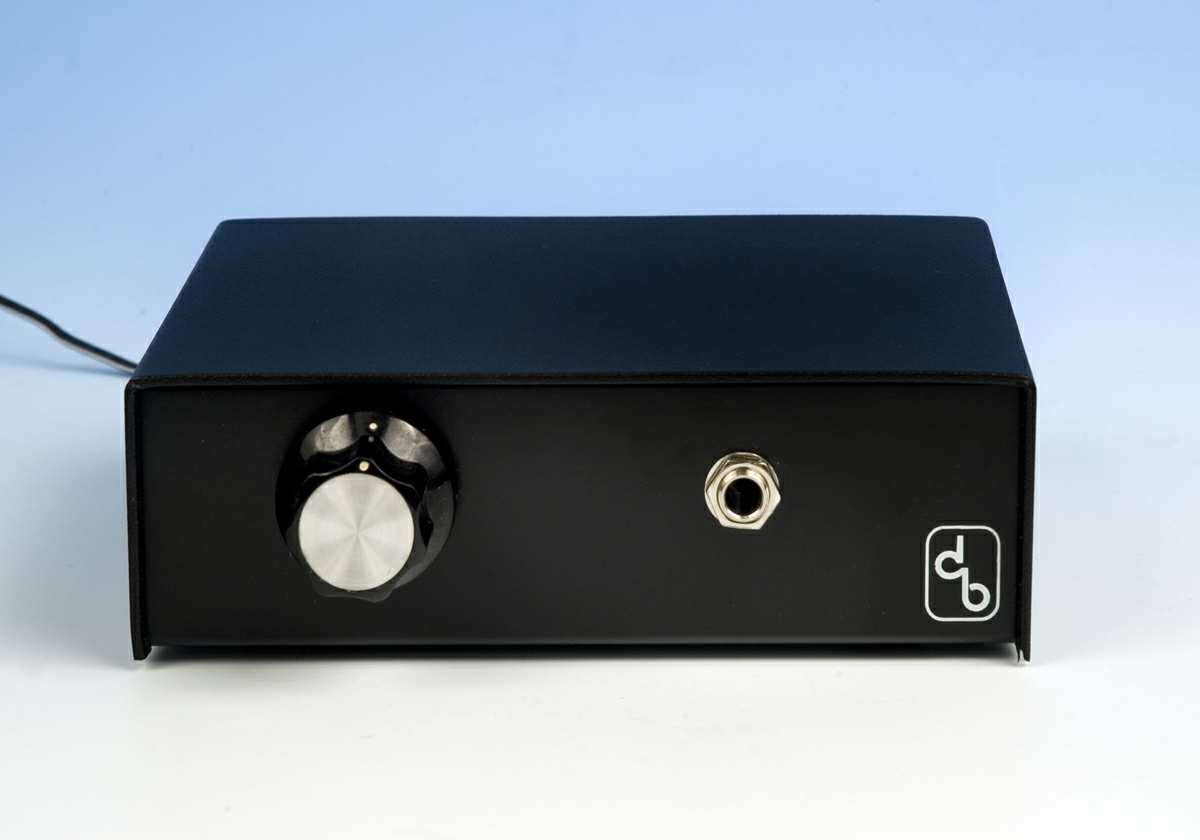

DB-9 Headphone
Amp with Alps volume control
350
Photo Specs

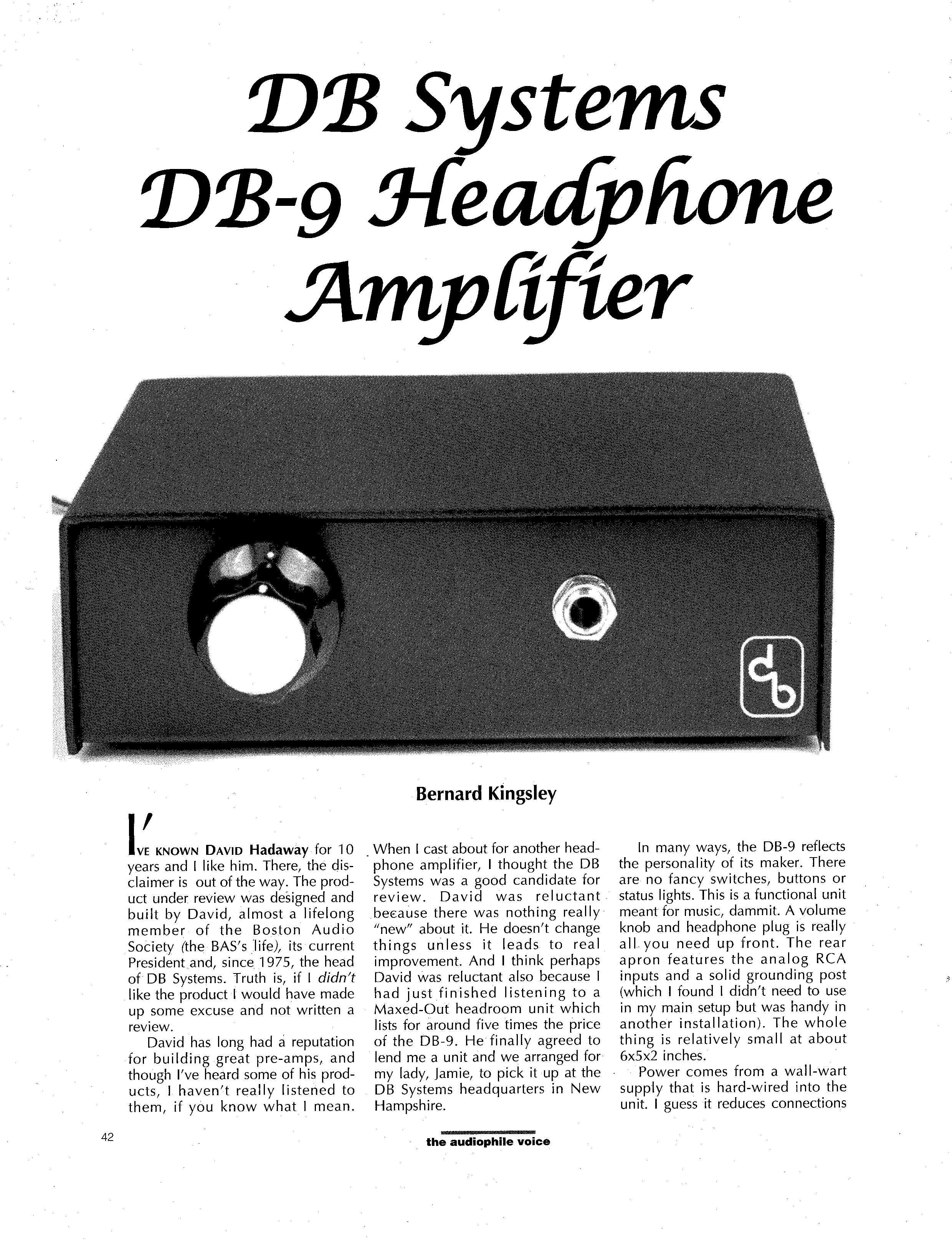

Review pg 1

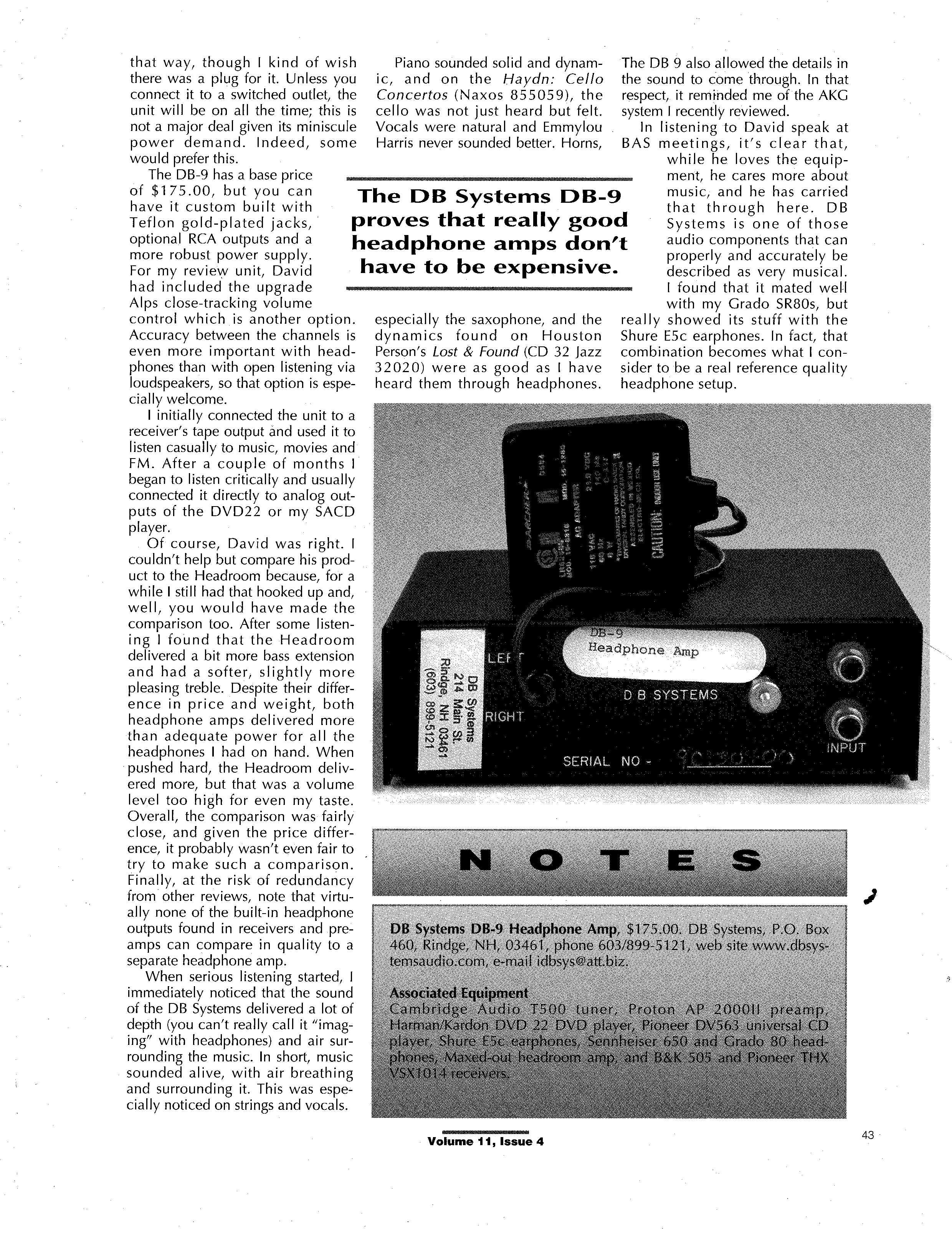

Review
pg 2
DB-10 Microphone
Preamp
350
DB-11 Moving
Coil Headamp, 22 dB gain, feeds a phono input 350

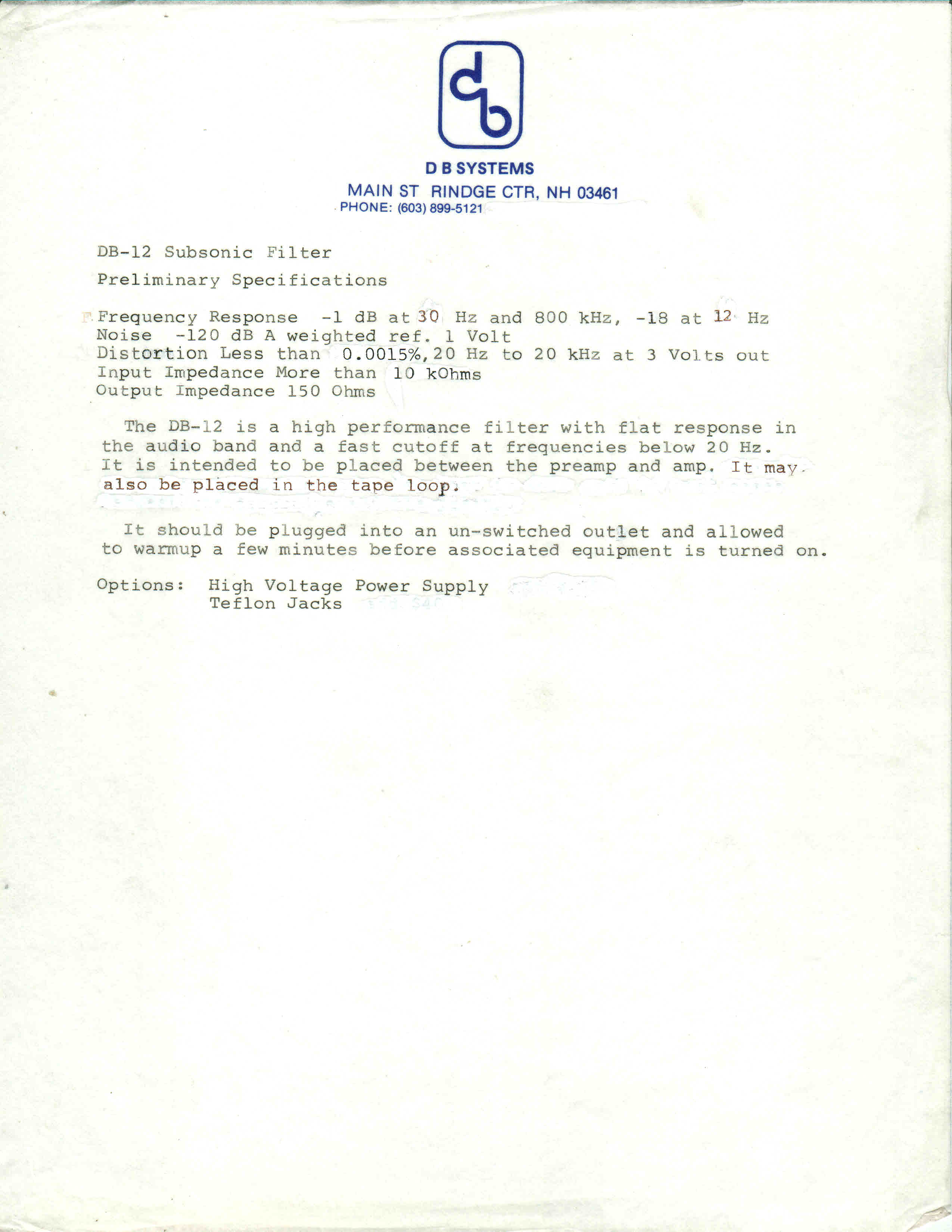

DB-12 Active Subsonic
Filter 18 dB per octave, -3 dB @ 25 Hz, -18 dB @ 12 Hz, flat response in
pass band, +-.05 dB 50 Hz to 20 kHz, fast cutoff below
(18 dB Butterworth).
Intended to be placed between preamp and amp or in tape
loop
390 Specs Photo
DB-13 Line Amp 350
DB-14 Variable
Low Pass
300
* May be ordered with the High Voltage High
Current Regulated Power Supply
